Goal: Configure a Carousel Cloud digital signage template in Zoom, and then register the Zoom Rooms device as a player in the Carousel Cloud web interface
Supported Carousel Cloud Features
Please note:
Specific questions about hardware that meets the criteria linked above should be directed to your systems integrator or Carousel Cloud reseller to choose appropriate devices for your digital signage requirements
To complete the instructions below, your Zoom user account must have access to edit Zoom Rooms
-
macOS players may intermittently unregister themselves after being properly added.
To resolve this, remove the following content found in
~/Library/WebKit/us.zoom.ZoomRoomsDigitalSignage/WebsiteData/and then restart the computer
Overview of the Setup Process
Configure a Digital Signage template for Carousel Cloud in Zoom
Register the Zoom Rooms device as a player in the Carousel Cloud web interface
Done!
Zoom Rooms Player Setup Process
-
Obtain the Zoom Room provisioning URL
Log in to Carousel Cloud
Click on the gear in the upper-right corner
Click on Configure
Select Players

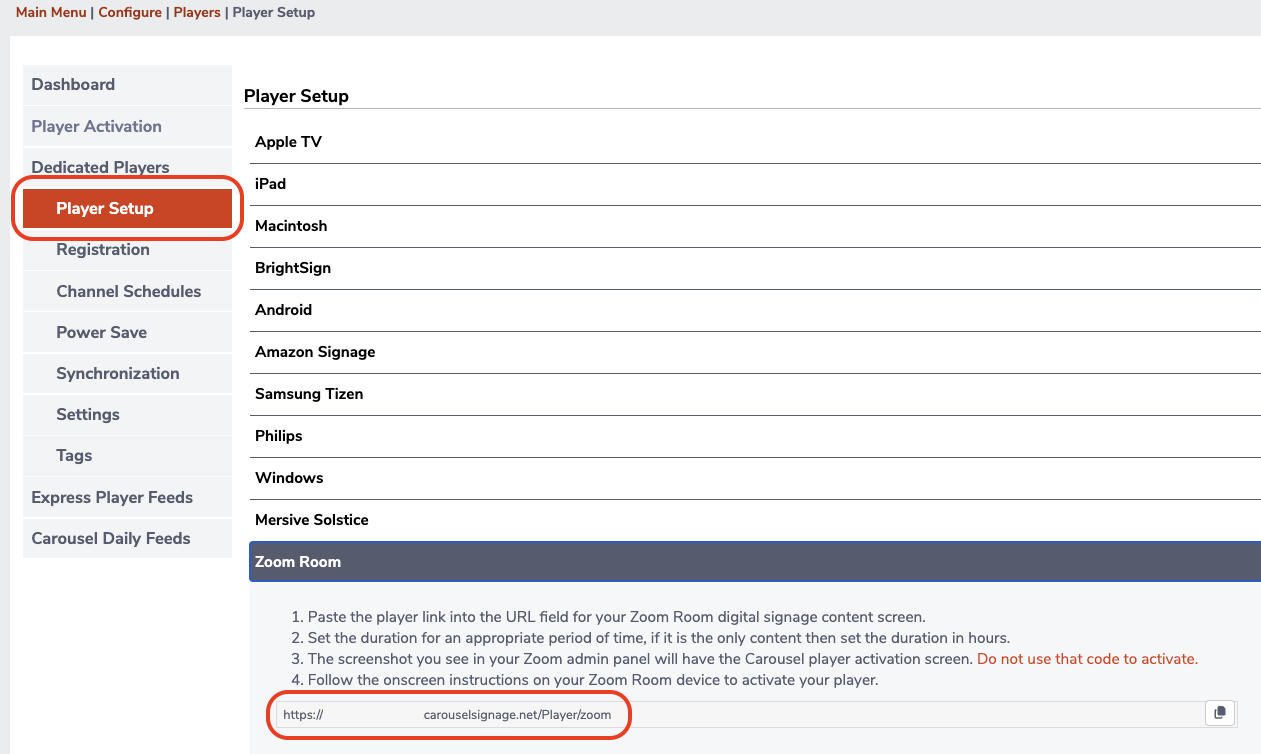

Choose Player Setup
Click on Zoom Room
-
Copy the URL provided
Log in to your Zoom account
In the Admin section, select Room Management > Zoom Rooms
Click the Edit button next to one of your Zoom Rooms
Select the Digital Signage tab
-

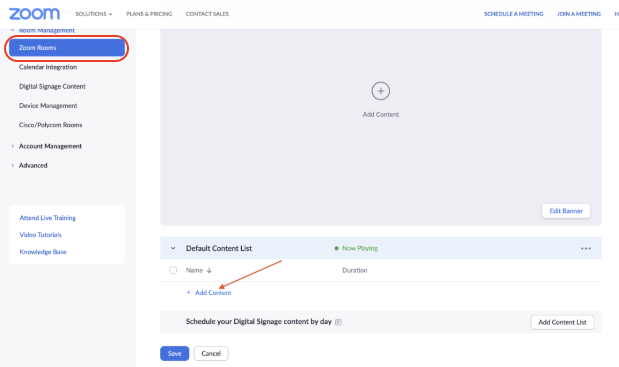

Click the Add Content link in the content list.

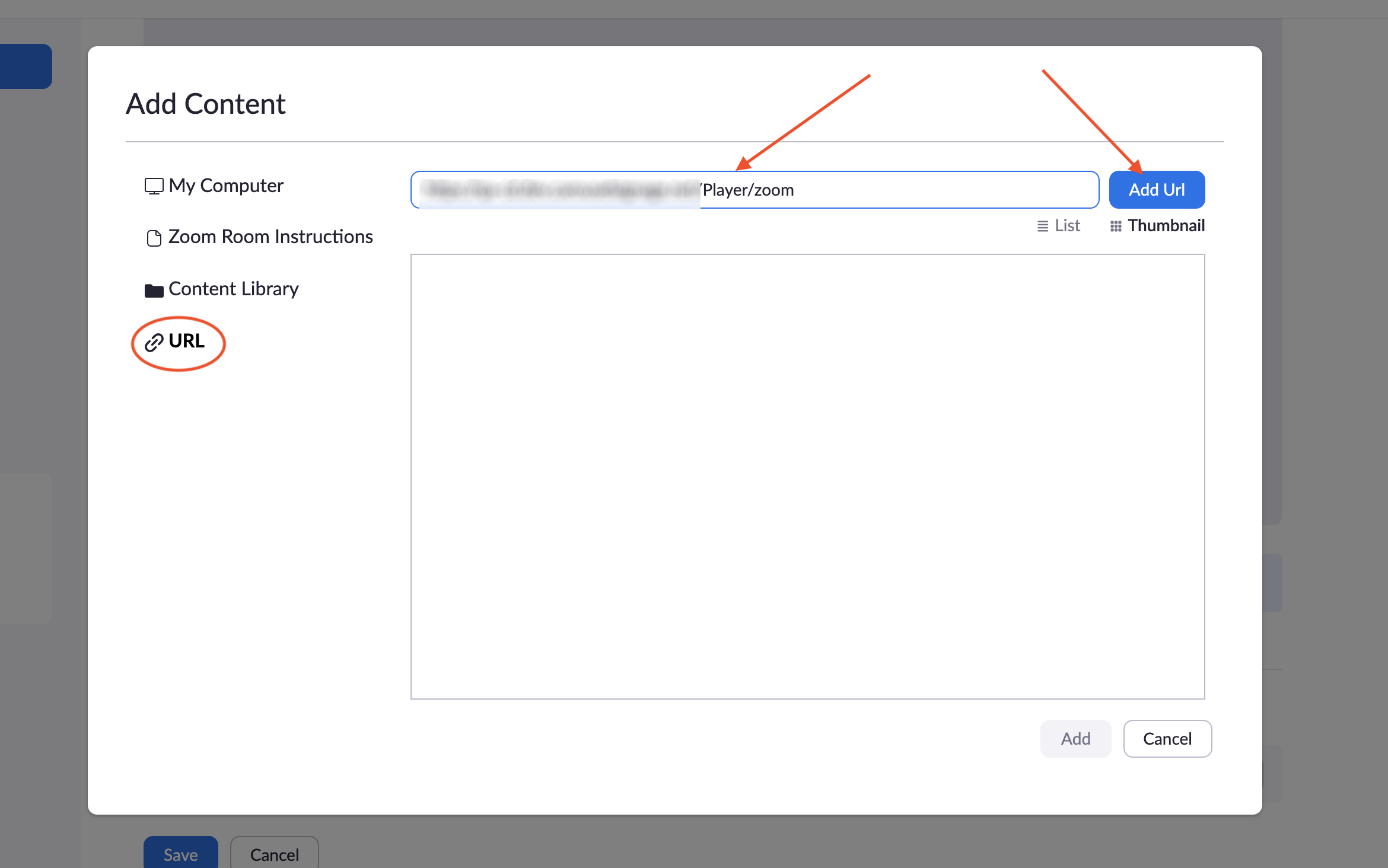

Click on URL on the left side and then paste the Zoom Room provisioning URL you previously copied from Carousel Cloud into the URL field
-
Click Add Url
-

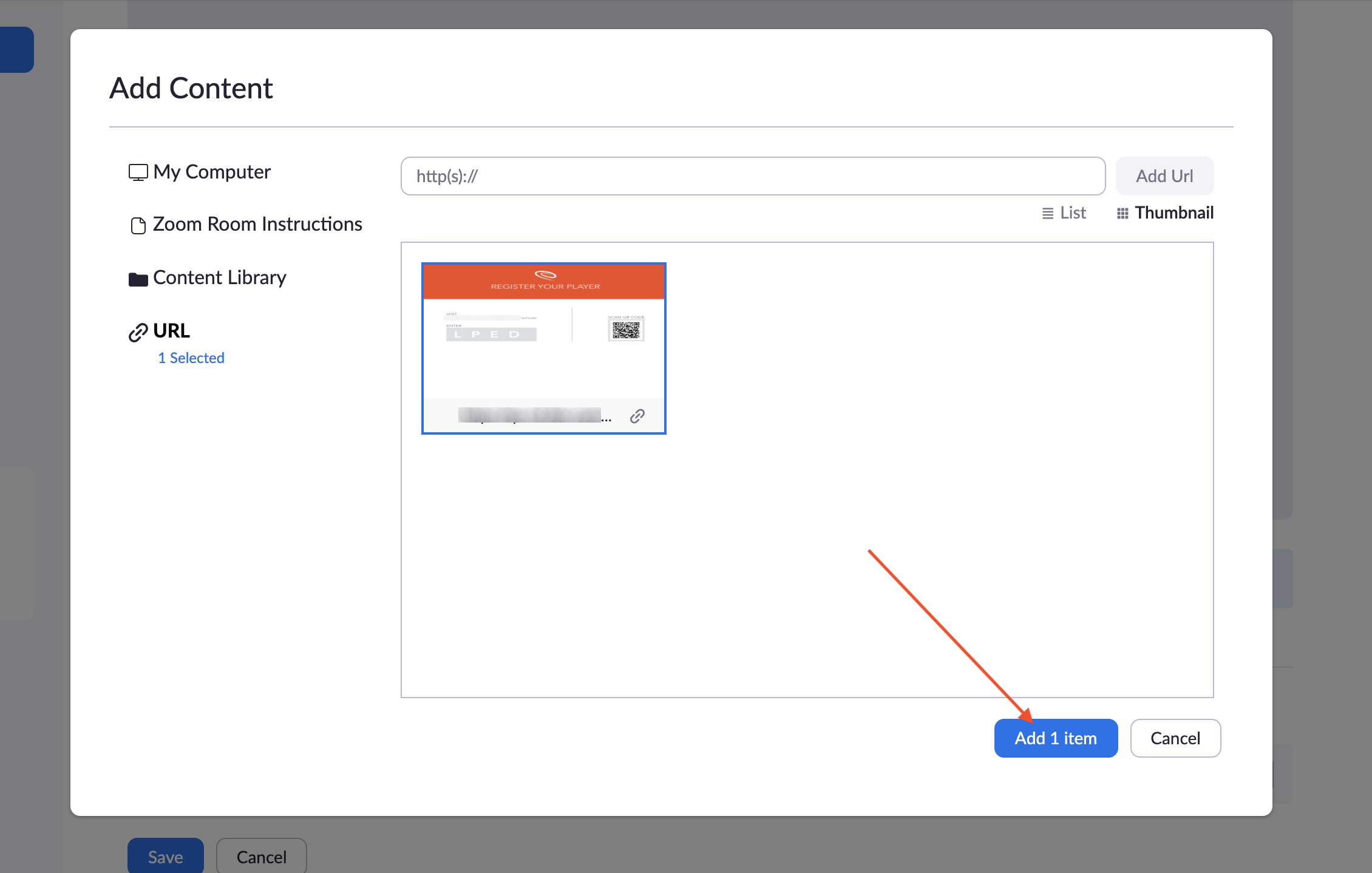

Click Add 1 item
-

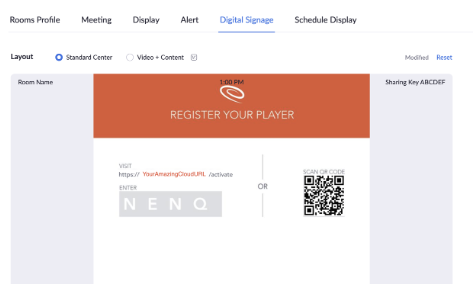

As shown below, you will now see a preview of the Carousel Cloud player registration screen in the Zoom admin panel. Do not use the generated code in the Zoom preview window to register your player in Carousel Cloud. Your player will be registered in a later step.
-

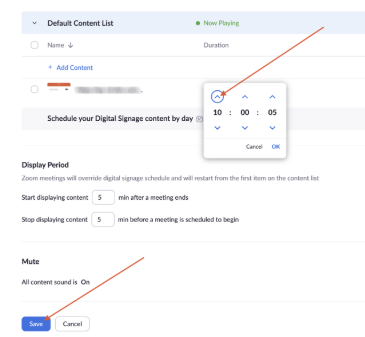

Adjust the schedule for your digital signage as needed, then Save your settings in Zoom
-

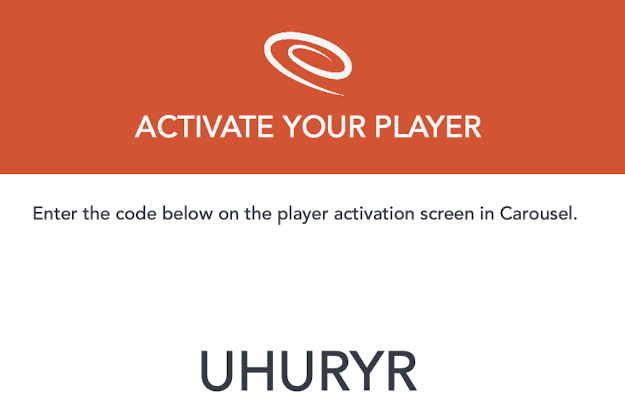

Once the Zoom Rooms device enters digital signage mode, the Carousel Cloud player registration screen will be displayed, as shown below
-
Lastly, you will need to register the Zoom Rooms device as a player in Carousel Cloud
If you are only registering a few players, you can follow the steps under the heading Player Activation in this Carousel Cloud article
For large deployments, follow the steps under the heading Batch Registration in this Carousel Cloud article to register multiple players simultaneously
Once the Zoom Rooms device is registered in Carousel Cloud, the device will begin to display your default cloud channel or the channel you specify during the registration process
