Carousel Cloud Player Setup for ScreenBeam

Goal: Configure the ScreenBeam digital signage template, and then register the ScreenBeam device as a player in the Carousel Cloud web interface

Supported Carousel Cloud Features

Overview of the Setup Process

1. Configure a new digital signage template in the ScreenBeam software, using the ScreenBeam provisioning URL from Carousel Cloud

2. Register the ScreenBeam device as a player in the Carousel Cloud web interface

3. Done!

ScreenBeam Player Setup Process

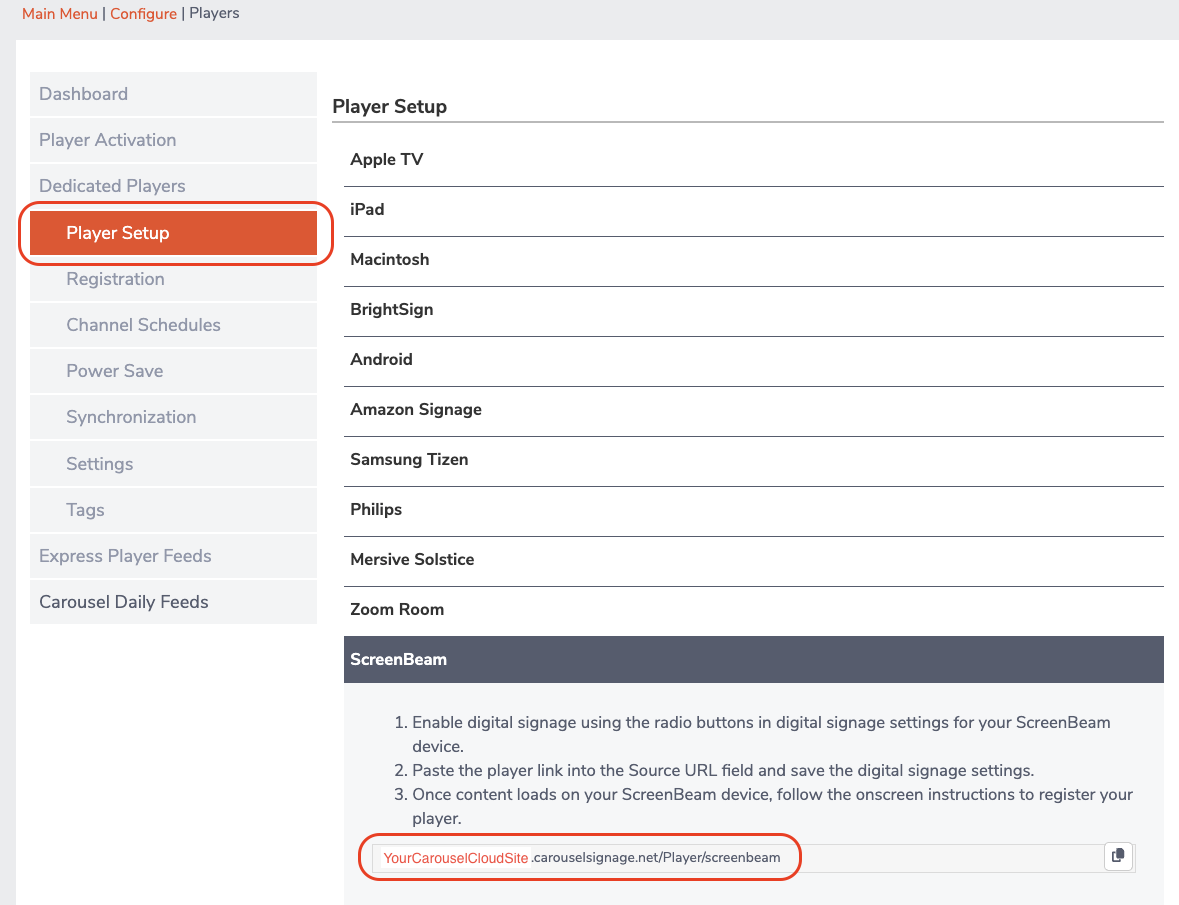

1. Obtain the ScreenBeam provisioning URL

   1. Log in to Carousel Cloud

   2. Click on the gear in the upper-right corner

   3. Click on Configure

   4. Select Players

   5. Choose Player Setup

   6. Click on ScreenBeam

   7. Copy the URL provided

2. Log in to your ScreenBeam CMS software or access the settings page directly on the ScreenBeam device

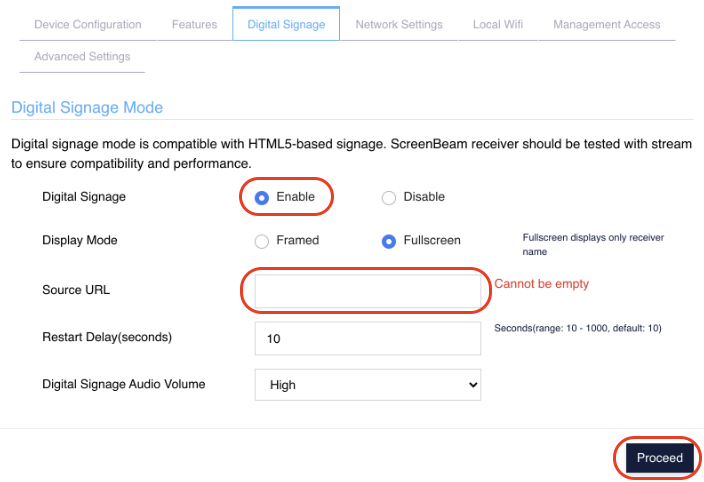

3. In the Digital Signage section:

   1. Click the radio button to Enable digital signage

   2. Add the ScreenBeam URL you previously copied from Carousel Cloud to the Source URL field

   3. Save the settings

4. If the ScreenBeam doesn’t immediately enter digital signage mode, please restart the ScreenBeam device

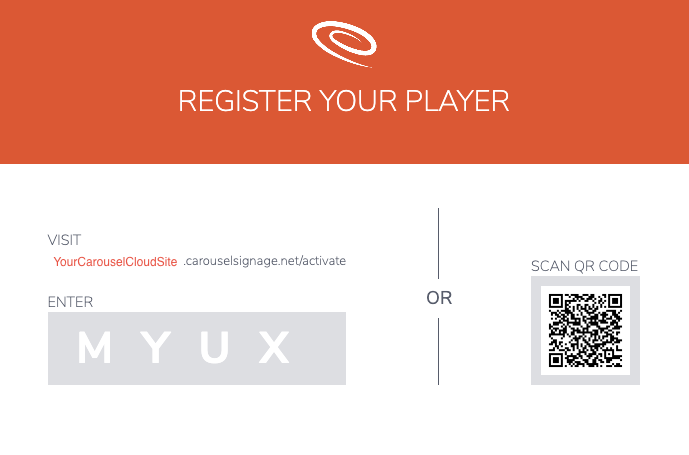

5. After the ScreenBeam device is in digital signage mode, the device will display a player activation screen, as shown below

6. Lastly, you will need to register the ScreenBeam device as a player in Carousel Cloud

   1. If you are only registering a few players, you can follow the steps under the heading Player Activation in this Carousel Cloud article

   2. For large deployments, follow the steps under the heading Batch Registration in this Carousel Cloud article to register multiple players simultaneously

7. Once the ScreenBeam device is registered in Carousel Cloud, the device will begin to display your default cloud channel or the channel you specify during the registration process

Troubleshooting Information and Guided Steps

Carousel Cloud Player Troubleshooting Articles
